Cement Superplasticizer Compatibility: Diagnosis and Fixes
Concrete that flows at the plant and stiffens before placement shows the most common symptom of incompatibility. FHWA defines incompatibility as interactions between acceptable materials that result in unexpected or unacceptable performance. The cost lands as honeycombing, added site water and erratic setting. This guide explains cement superplasticizer compatibility, covering how C3A, sulfate, clay and temperature drive the failures and how Marsh cone and mini-slump tests diagnose them. It draws on the FHWA incompatibility protocol and open peer-reviewed studies, plus the formulation support Global Formulation gives construction chemical manufacturers.
Cement Superplasticizer Compatibility Basics: Symptoms and Their Usual Causes
Compatibility problems show up as a handful of recognisable symptoms, and each points to a different part of the chemistry. FHWA lists premature stiffening and erratic setting, including flash set, false set and delayed setting and strength gain. An open-access PCE study adds segregation, loss of consistency and increased shrinkage to the list. Reading the symptom first narrows the search before any test is run.
| Symptom | Usual Cause | Source |
|---|---|---|
| Rapid slump loss, premature stiffening | Aluminate and sulfate out of balance | FHWA-HRT-06-082 |
| Flash (permanent) set | Not enough sulfate in solution for the amount of C3A | FHWA-HRT-06-082 |
| False (temporary) set | Incorrect dehydration of gypsum to plaster during cement grinding | FHWA-HRT-06-082 |
| Delayed setting | Too much calcium consumed in early uncontrolled C3A reactions, plus retarding effects of some admixtures | FHWA-HRT-06-082 |
| Low initial fluidity in clay-bearing mixes | PCE adsorbs preferentially onto the clay | Materials 2023, 16, 7515 |
| Segregation at high dose | Dosage beyond the saturation point | Polymers 2025, 17, 1583 |
The FHWA TechBrief stresses that these reactions occur within the first 15 to 30 minutes after mixing, which leaves little time to correct them on site. It also says the mechanisms are complex, interrelated and often temperature related, so no simple method reliably measures the risk. Our guide to plasticizers and superplasticizers covers the admixture classes. Our article on self-compacting concrete admixtures covers how PCE and viscosity modifiers balance.
To fix a failure, the mechanism has to be clear first.
Cement Admixture Interaction: C3A, Sulfate Balance and Competitive Adsorption
Superplasticizers work by adsorbing on cement particles, and compatibility is decided by what else competes for those surfaces. PCE carries carboxyl groups that adsorb on cement particles and give electrostatic repulsion, while its side chains add steric hindrance. C3A reacts rapidly with water, and the calcium sulfate added during grinding controls it. When sulfate is too scarce for the C3A present, uncontrolled aluminate reaction stiffens the paste whatever the admixture does.
| Variable | How It Acts | Source |
|---|---|---|
| C3A content and sulfate supply | C3A reacts rapidly unless sulfate controls it; too little sulfate gives flash set | FHWA-HRT-06-082 |
| Form of calcium sulfate | Gypsum is partly dehydrated to plaster in grinding; the form sets how quickly sulfate reaches the solution | FHWA; Materials 2021, 14, 2683 |
| Supplementary cementitious materials | A fly ash containing C3A can flash set or stiffen rapidly for lack of sulfate | FHWA-HRT-06-082 |
| Water-reducing admixtures | Some type A products tend to accelerate C3A hydration and can retard silicate reactions | FHWA-HRT-06-082 |
| Temperature, fineness, alkali, water to cementitious ratio | Higher temperature, very fine cement, high alkali and very low water content raise the risk | FHWA-HRT-06-082 |
| Clay | PCE adsorbs onto clay, leaving less for cement particles | Materials 2023, 16, 7515 |
The admixture side matters as much as the cement side. A study of two PCE structures found that the one with higher charge density and shorter side chains adsorbed more. It also dispersed the paste better initially than the one with longer side chains. The same study found that a cement with more C3S adsorbed more PCE, which lengthened the hydration induction period. In a sulfate study, a high sulfate concentration reduced the efficiency of a maleic type superplasticizer, while an acrylic type with fewer carboxylate groups was less sensitive. Our guide to PCE synthesis covers how these architectures are built.
With the mechanisms mapped, the next job is to measure which one is acting.
Marsh Cone and Mini-Slump Tests: Diagnosing Cement Superplasticizer Incompatibility

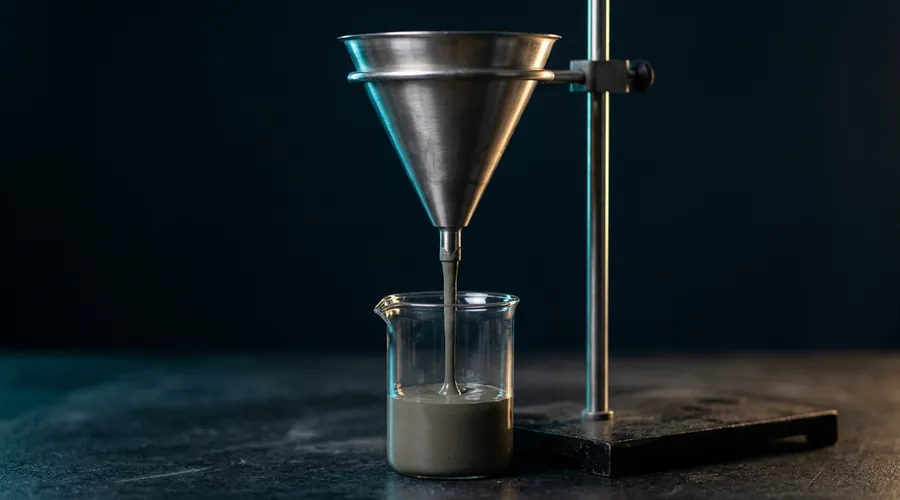

Diagnosis starts with paste tests, because paste isolates the cement and admixture from the aggregates. The Marsh cone gives the efflux time of about 1,000 mL of paste, and the mini-slump cone gives its spread. Both are run at several admixture doses to build a dose curve. FHWA adds mortar, calorimetry and concrete tests for the problems that paste tests miss.
| Test | What It Reads | Note |
|---|---|---|
| Marsh cone (EN 445 cone, 8 mm nozzle) | Efflux time of about 1,000 mL of paste; falls with dose until the saturation point | Easy and low cost, but long and hard to reproduce |

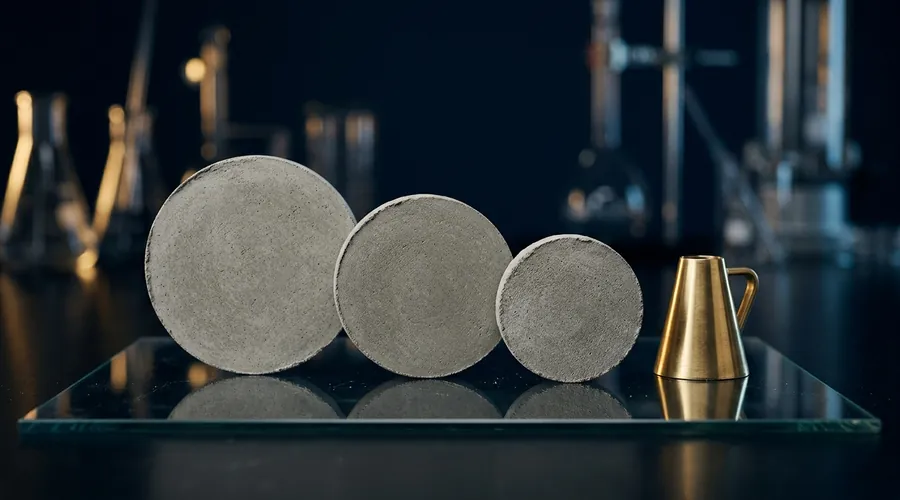

| Mini-slump cone | Spread of the paste; the hardened base is measured at five locations | FHWA lists it as an indicator of aluminate incompatibility |
| ASTM C359 mortar stiffening | Early stiffening of mortar | Aluminate-based incompatibility |
| Calorimetry, setting time, parallel-plate rheology | Hydration and structure build-up over hours | Silicate reaction problems |
| Concrete slump loss, semi-adiabatic temperature, setting time | Confirmation at concrete scale | Run when paste tests flag a problem |
The Marsh funnel study of 203 paste mixtures describes the saturation point. Flow time decreases as dosage increases, and above a certain dosage it stops changing significantly. A limestone cement study used the EN 445 cone with an 8 mm nozzle and recorded the time for 1,000 mL to flow out. In that study, pastes below a water to binder ratio of 0.4 were sticky and stiff, so the test ratio should match the real mix. Test conditions also matter, because FHWA says evaluation should cover the likely range of temperatures, material quantities and dosage rates.
A diagnosis is only useful if it points to a fix.
Fixing Cement Superplasticizer Incompatibility: Admixture, Sulfate, Sequence and Temperature
Fixes fall into two groups: change the materials, or change how they are combined. FHWA lists the levers as supplementary cementitious material type, source or quantity, chemical admixture type or dosage, batching sequence and mix temperature. Each lever has a cost, so the diagnosis decides which to pull first. A fix that works on one cement lot still needs confirming on the next.
| Cause | Fix Route | Source |
|---|---|---|
| High C3A or low sulfate in cement or SCM | Change the SCM or its source or quantity, or adjust admixture type or dosage | FHWA-HRT-06-082 |
| Sulfate-sensitive admixture | Choose a chemistry that tolerates the paste sulfate level; one study found an acrylic type more suitable at high sulfate than a maleic type | Materials 2021, 14, 2683 |
| Temperature-driven stiffening | Adjust mix temperature and batching sequence | FHWA-HRT-06-082 |
| PCE architecture mismatch | Match charge density and side chain length to the cement; one study found shorter side chains with higher charge density dispersed better initially | Materials 2023, 16, 4168 |
| Clay in aggregates | Research stage: a cationic maltitol-based sacrificial agent adsorbs onto clay ahead of PCE | Materials 2023, 16, 7515 |
| Overdosing to compensate | Not a fix: beyond saturation there is no flow gain, added cost and segregation risk | Polymers 2025, 17, 1583 |
The sacrificial agent paper shows a different route from changing the polymer. The agent is a small cationic molecule that adsorbs onto clay by electrostatic attraction, so the PCE stays available for cement particles. It is a laboratory result for a clay-bearing cement paste, and it does not replace screening aggregate for clay. Our guide to construction chemicals technology and formulations shows where admixture reformulation fits among other product lines.
Prevention is cheaper than any of these fixes.
Preventing Incompatibility: Specification, Screening and Quality Control
Prevention costs less than diagnosis, and FHWA builds its protocol around preconstruction screening. The aim is to evaluate how sensitive a proposed system is to changes in material composition and environment. That allows alternative materials to be chosen in advance or action plans to be prepared. Field tests then confirm that delivered materials stay uniform and similar to those screened.
- Review the chemistry first — FHWA flags fine cementitious materials with high C3A or low sulfate, and fly ashes with high calcium oxide.
- Check the water reducer — FHWA says sugar and triethanolamine-based water reducers can increase the risk, especially at elevated temperatures.
- Screen across conditions — Run tests over the likely temperatures, material quantities and admixture dosages.
- Escalate from paste to concrete — Test concrete for slump loss, semi-adiabatic temperature and setting time when paste tests flag a problem.
- Track drift — Monitor chemical reports for reactive materials, slump loss at different times and setting time against the preconstruction data.
- Match effort to risk — FHWA says a large, high-profile project needs more tests than a small urban repair.
Joining screening to reformulation is where a development partner adds the most.
Working With a Construction Chemicals Formulation Consultant
Compatibility work joins cement chemistry, polymer architecture, test method design and site practice, and a change in one shifts the others. A construction chemicals formulation consultant maps the cement panel and the failure symptoms first, then screens admixture candidates against them. Construction chemical product development services extend that into reformulation and specification writing. A contract formulation scale-up partner then carries the validated product into repeatable production.
- Collect the failure data — symptoms, cement lots, temperatures and batching sequence.
- Characterise the cements — C3A, sulfate form, fineness, alkali and any SCM in the system.
- Run the dose curves — Marsh cone and mini-slump across doses and cement lots.
- Test over time — mortar, calorimetry and concrete slump loss for the first hours.
- Reformulate — adjust polymer architecture or admixture chemistry against the diagnosis.
- Confirm on the range — repeat on other cement lots and temperatures.
- Transfer to manufacture — synthesis, blending and release testing for the scale-up partner.
Our construction chemicals range shows where admixture programmes sit among the other product types. Global Formulation provides cement panel screening, test programme design, reformulation and manufacturing transfer for construction chemical manufacturers. Dosages, mix designs and proprietary polymer recipes stay outside this guide by design, because they belong to each client's product.
Frequently Asked Questions
What is cement and superplasticizer incompatibility?
FHWA defines incompatibility as interactions between acceptable materials that result in unexpected or unacceptable performance. Each material can meet its own specification and the combination can still fail.
The most common problems are premature stiffening, which shows as rapid slump loss, and erratic setting, which includes flash set, false set and delayed setting and strength gain.
Why does one cement lot cause slump loss when another does not?
Cement lots differ in C3A content, sulfate level and calcium sulfate form, and these decide how fast aluminate reactions stiffen the paste. FHWA notes that fine cementitious materials with high C3A or low sulfate content are at risk.
Fineness, alkali content, temperature and water to cementitious ratio also shift the balance. A superplasticizer that works on one lot therefore needs confirming on the next.
What is the Marsh cone test and what is the saturation dose?
The Marsh cone test records how long a fixed volume of cement paste takes to flow through a cone with an 8 mm nozzle, following the EN 445 cone. Efflux time falls as superplasticizer dosage rises.
Above a certain dosage the flow time stops changing significantly, and that dosage is the saturation point. Using more admixture beyond it is uneconomic and carries a risk of segregation.
Does adding more superplasticizer fix slump loss?
Not beyond the saturation dose, because flow time no longer improves and the paste can segregate. The cause of the slump loss is usually in the cement and sulfate balance, not in the admixture quantity.
FHWA lists the levers that do work: change the supplementary cementitious material, the admixture type or dosage, the batching sequence or the mix temperature, after a diagnosis.
How does clay affect PCE superplasticizers?
When clay is present in the concrete, PCE adsorbs preferentially onto the clay, so it cannot combine fully with cement particles and the paste loses workability. A 2023 laboratory study describes this behaviour.
The same study developed a cationic maltitol-based sacrificial agent that adsorbs onto clay ahead of the PCE. It is a research-stage approach, so clean aggregate and PCE selection remain the practical first steps.
How does sulfate affect superplasticizer performance?
A published study of acrylic and maleic type superplasticizers found that sulfate ions from hemihydrate, dihydrate and anhydrite changed paste fluidity and hydration heat. A high sulfate concentration reduced the efficiency of the maleic type, while the acrylic type was less sensitive.
The authors attribute the loss to competition between sulfate ions and the carboxylate groups for calcium sites on the cement grain. Their conclusion is that sulfate concentration in the paste should be considered when selecting the superplasticizer.
What tests should be run before switching cement or admixture?
Start with paste tests, Marsh cone flow time and mini-slump spread across a range of doses. FHWA also lists the ASTM C359 mortar stiffening test for aluminate problems, and calorimetry and setting time for silicate problems.
If paste tests flag a problem, make concrete and measure slump loss, semi-adiabatic temperature and setting time. FHWA says the tests should cover the likely range of temperatures, material quantities and admixture dosages.
